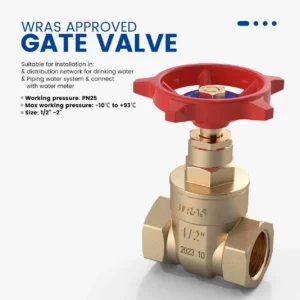

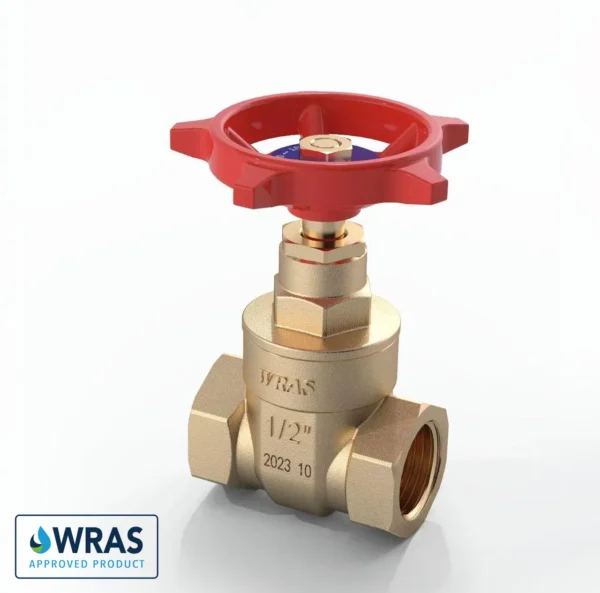

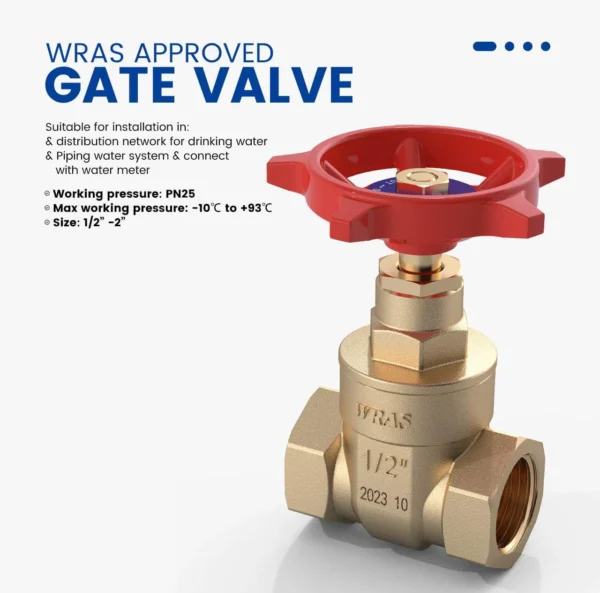

GATE VALVE
The Gate Valve is an essential component in pipeline systems, primarily designed for shut-off applications. It plays a crucial role in water supply systems.

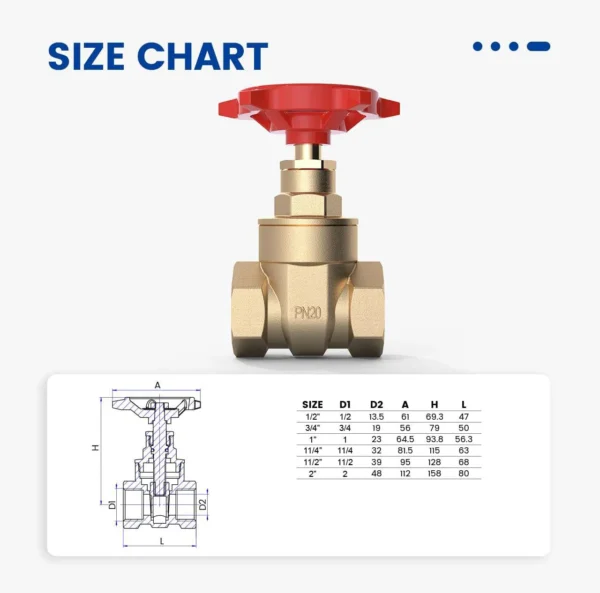

Size and Shape:
It is manufactured in sizes ranging from 1/2″ to 2″. The valve features a robust and durable construction with components made from high-quality materials, such as brass, aluminum, and EPDM.
Threads:
The WRAS Approved Gate Valve is equipped with female threads, which provide a secure and leak-resistant connection in pipeline systems.
Temperature and Pressure Ranges:
It can function effectively in temperatures ranging from -20°C to +120°C, ensuring its adaptability in both cold and hot conditions. It has a pressure range of 2.0 MPa, allowing it to handle a significant amount of pressure within the specified limits.
- Specification
Specification
| Material | Lead,Brass | Valve Type | Gate Valve |
| Brand | Midline Valve | Working medium | Water |
| Item Dimensions LxWxH | 1/2″ to 2″ | Nominal pressure: | 2.0 MPa |
| Exterior Finish | Brass | Working Temperature: | -20 c |
| Inlet Connection Type | Full port | Material: | Brass |
| Specification Met | CSA | Thread: | Female Thread,apply to GB/T12230 standard |
| Specification: | DN15/20/25/32/40/50/65/80 | Handle |
Normal |
