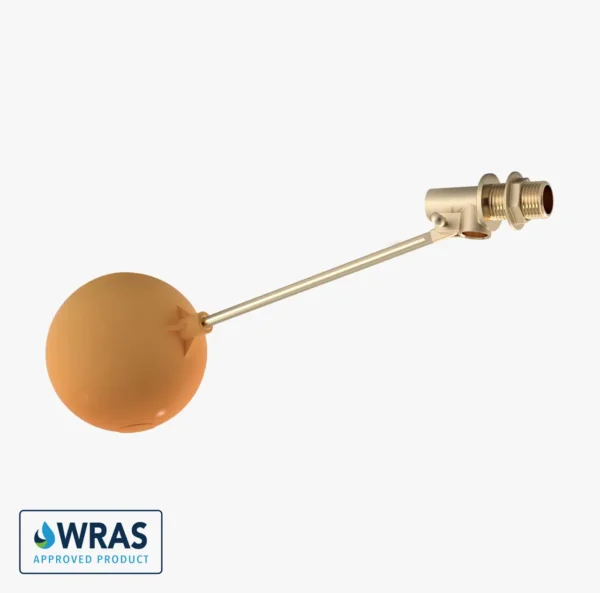

FLOAT VALVE WITH BALL

SKU: HC-10182 Category:

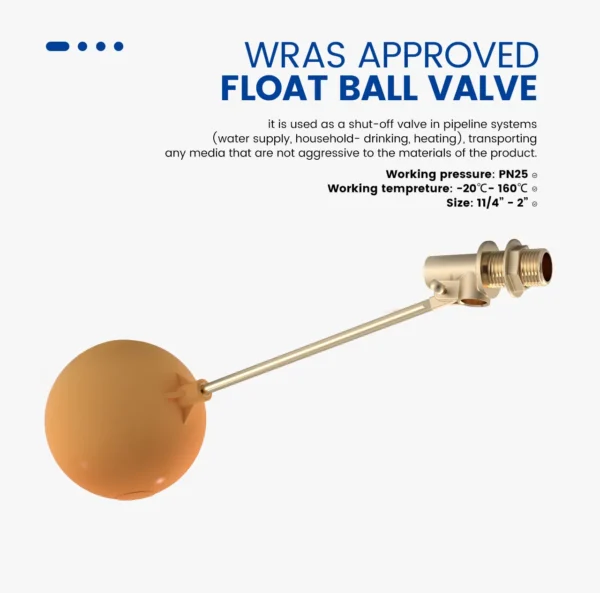

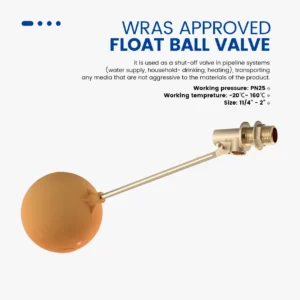

The WRAS (Water Regulations Advisory Scheme) Approved Float Ball Valve is a reliable and versatile shut-off valve designed for use in various pipeline systems, including water supply, household drinking water, and heating applications. Size and Shape: The WRAS Approved Float Ball Valve is available in sizes ranging from 11/4″ to 2″. These size options ensure compatibility with different pipe diameters and systems, making it a flexible choice for a variety of installations. Threads: The threaded design ensures a secure and leak-free connection, making it a convenient choice for both professional plumbers and DIY enthusiasts. The threads are built to industry-standard specifications. Temperature and Pressure Ranges: The WRAS Approved Float Ball Valve is engineered to operate efficiently under demanding conditions. It can withstand a working temperature range from -20°C to 160°C, making it suitable for both cold and hot water applications. The valve is rated for a working pressure of PN25.

Contact Us

Specification

Material Lead,Brass Valve Type Float Ball Valve
Brand Midline Valve Working medium Water

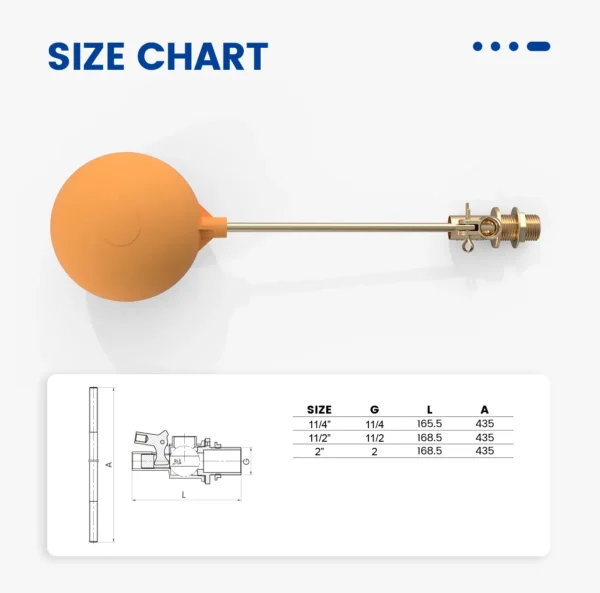

Item Dimensions LxWxH 11/4″ to 2″ Nominal pressure: PN25
Exterior Finish Brass Working Temperature: 11/4″ to 2″
Inlet Connection Type Full port Material: Brass
Specification Met CSA Thread: Main
Specification: DN15/20/25/32/40/50/65/80 Handle No Handle
