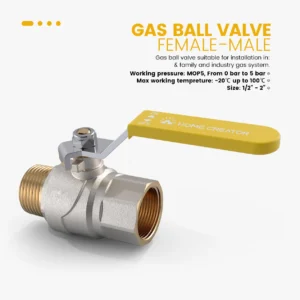

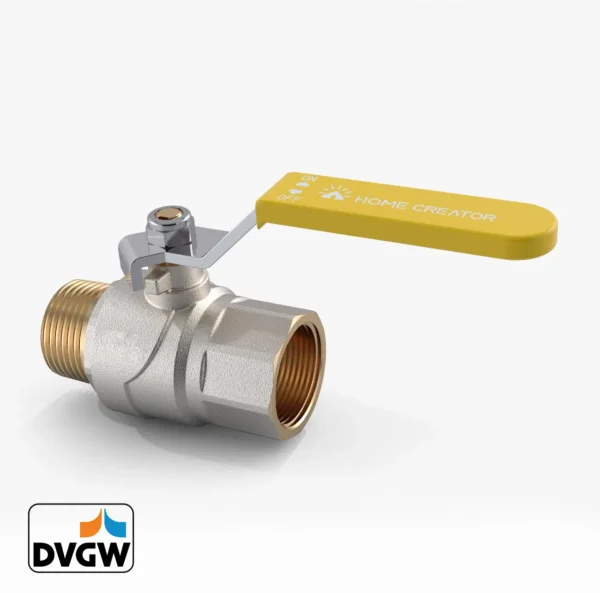

GAS BALL VALVE, FULL FLOW, FEMALE-MALE

The gas ball valve described here is designed for installation in both family and industrial gas systems. It is a reliable choice that meets the necessary safety requirements with its CE approval, DVGW approval, and compliance with the EN331 standard.

Size and Shape: The gas ball valve is available in a size range from 1/4″ to 2″, providing versatility to accommodate various installation needs. This range allows for flexibility in fitting the valve into different gas system configurations, whether for residential or industrial purposes.

Threads: The gas ball valve supports both female and male threads, enabling easy installation and connection with other gas system components. It offers two types of standardized female threads: ISO 7/1 Rp parallel (equivalent to DIN EN 10226-1 and BS EN 10226-1) and ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

Temperature and Pressure Range: It can effectively handle working temperatures as low as -20°C and as high as 120°C, ensuring reliable performance even in extreme weather conditions. In terms of pressure, the valve is rated for MOP5 (maximum operating pressure 5).
