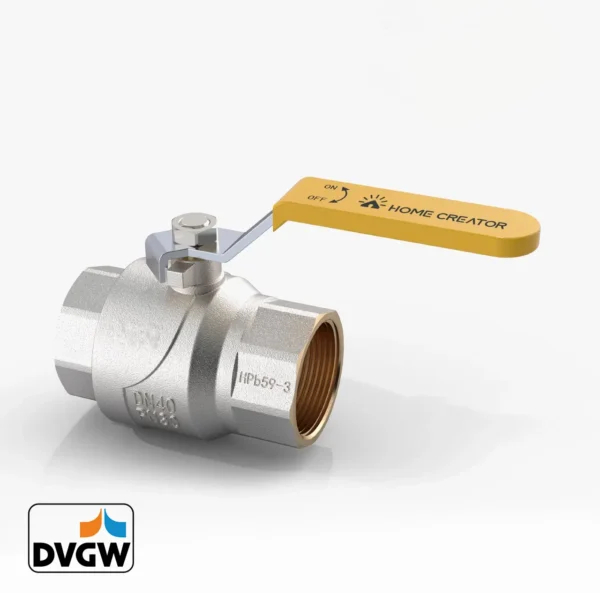

GAS BALL VALVE, FULL FLOW, FEMALE-FEMALE
This gas ball valve is designed to be suitable for installation in both family and industrial gas systems. It offers a reliable solution for controlling gas flow with its CE approval, DVGW approval, and compliance with the EN331 standard.

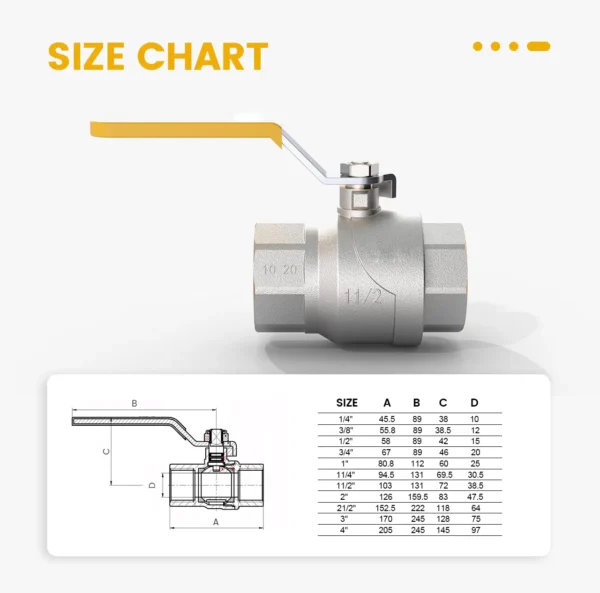

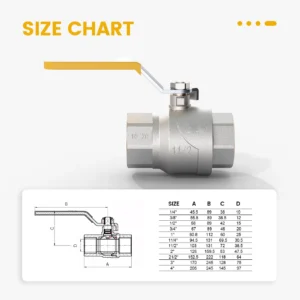

Size and Shape: The gas ball valve is available in a size range from 1/4″ to 4″, offering versatility to accommodate different installation requirements. This range allows for flexibility in fitting the valve into various gas system configurations, whether it is a small-scale family system or a larger industrial setup.
Threads: The gas ball valve features female/female threads. It supports two types of standardized female threads: ISO 7/1 Rp parallel (equivalent to DIN EN 10226-1 and BS EN 10226-1) and ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Temperature and Pressure Range: It can handle working temperatures as low as -20°C and as high as 120°C, ensuring reliable performance even in extreme weather conditions. In terms of pressure, the valve has a working pressure rating of MOP5 (maximum operating pressure 5).
- Specification
Specification
| Material | Lead,Brass | Valve Type | Ball Valve |
| Brand | Midline Valve | Working medium | Water |
| Item Dimensions LxWxH | 1/4″ to 4″ | Nominal pressure: | MOP5 |
| Exterior Finish | Brass | Working Temperature: | -20 c |
| Inlet Connection Type | Full port | Material: | Brass |
| Specification Met | CSA | Thread: | Female Thread,apply to GB/T12230 standard |
| Specification: | DN15/20/25/32/40/50/65/80 | Handle | Lever Handle |
